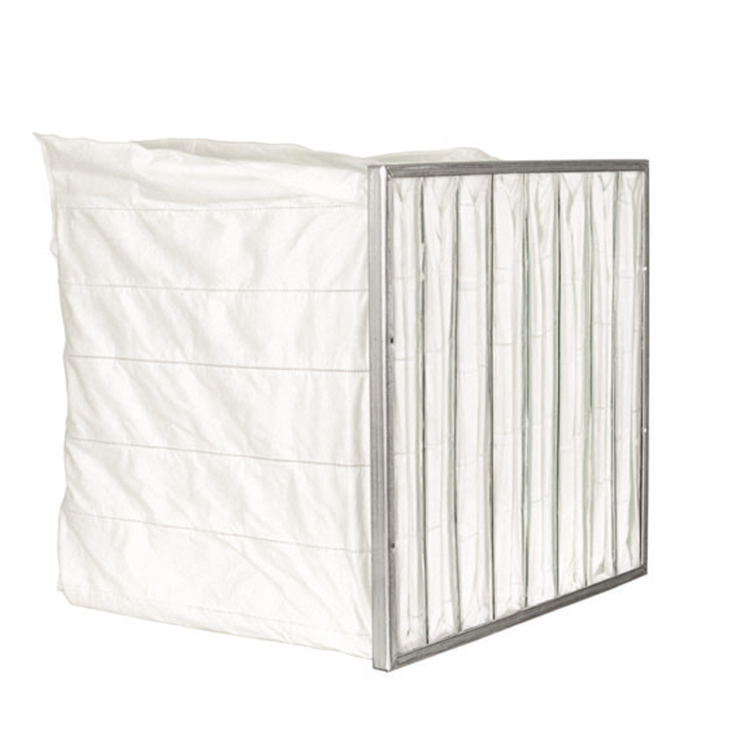

M5 M6 Bag Filters
M5 M6 Bag Filters
| Filter Media | Synthetic Polyester |
| Frame Material | Galvanized Sheet Metal |
| Frame Thickness | 20-25 mm |
| Classification (EN779:2012) | M5-M6 |
| Classification (EN779:2012) | ePM10 |
| Final Pressure Drop | 450 Pa |
| Max. Temperature | 80°C |
| Max. Moisture | 90% |
| Rated Face Velocity | 2,70 m/s |
PROPOSAL FORM
| Product Code |
Class EN779 |
Class ISO16890 |
Width (m) |
Height (mm) |
Depth (mm) |
Number Of Pockets |
Filtration Area |
Nominal Air Flow (m3/h) |
Initial Pressure Drop (± 10 % Pa) |
| BF-5-25-287-592-360-3 | M5 | ePMcoarse 55 % | 287 | 592 | 360 | 3 | 1,30 | 1700 | 90 |
| BF-5-25-490-592-360-5 | M5 | ePMcoarse 55 % | 490 | 592 | 360 | 5 | 2,10 | 2800 | 90 |
| BF-5-25-592-592-360-6 | M5 | ePMcoarse 55 % | 592 | 592 | 360 | 6 | 2,60 | 3400 | 90 |
| BF-5-25-287-592-360-4 | M5 | ePMcoarse 55 % | 287 | 592 | 360 | 4 | 1,70 | 1700 | 90 |
| BF-5-25-490-592-360-6 | M5 | ePMcoarse 55 % | 490 | 592 | 360 | 6 | 2,50 | 2800 | 90 |
| BF-5-25-592-592-360-8 | M5 | ePMcoarse 55 % | 592 | 592 | 360 | 8 | 3,40 | 3400 | 70 |
| BF-5-25-287-592-535-3 | M5 | ePMcoarse 55 % | 287 | 592 | 535 | 3 | 1,90 | 1700 | 70 |
| BF-5-25-490-592-535-5 | M5 | ePMcoarse 55 % | 490 | 592 | 535 | 5 | 2,20 | 2800 | 70 |
| BF-5-25-592-592-535-6 | M5 | ePMcoarse 55 % | 592 | 592 | 535 | 6 | 3,80 | 3400 | 70 |
| BF-5-25-287-592-535-4 | M5 | ePMcoarse 55 % | 287 | 592 | 535 | 4 | 2,50 | 1700 | 70 |
| BF-5-25-490-592-535-6 | M5 | ePMcoarse 55 % | 490 | 592 | 535 | 6 | 3,80 | 2800 | 65 |
| BF-5-25-592-592-535-8 | M5 | ePMcoarse 55 % | 592 | 592 | 535 | 8 | 5,00 | 3400 | 65 |
| BF-5-25-287-592-635-3 | M5 | ePMcoarse 55 % | 287 | 592 | 635 | 3 | 2,30 | 1700 | 65 |
| BF-5-25-490-592-635-5 | M5 | ePMcoarse 55 % | 490 | 592 | 635 | 5 | 3,80 | 2800 | 65 |
| BF-5-25-592-592-635-6 | M5 | ePMcoarse 55 % | 592 | 592 | 635 | 6 | 4,60 | 3400 | 65 |
| BF-5-25-287-592-635-4 | M5 | ePMcoarse 55 % | 287 | 592 | 635 | 4 | 3,00 | 1700 | 100 |
| BF-5-25-490-592-635-6 | M5 | ePMcoarse 70 % | 490 | 592 | 635 | 6 | 4,50 | 2800 | 100 |
| BF-5-25-592-592-635-8 | M5 | ePMcoarse 70 % | 592 | 592 | 635 | 8 | 6,00 | 3400 | 100 |
| BF-6-25-287-592-360-3 | M6 | ePMcoarse 70 % | 287 | 592 | 360 | 3 | 1,30 | 1700 | 100 |
| BF-6-25-490-592-360-5 | M6 | ePMcoarse 70 % | 490 | 592 | 360 | 5 | 2,10 | 2800 | 100 |
| BF-6-25-592-592-360-6 | M6 | ePMcoarse 70 % | 592 | 592 | 360 | 6 | 2,60 | 3400 | 100 |
| BF-6-25-287-592-360-4 | M6 | ePMcoarse 70 % | 287 | 592 | 360 | 4 | 1,70 | 1700 | 100 |
| BF-6-25-490-592-360-6 | M6 | ePMcoarse 70 % | 490 | 592 | 360 | 6 | 2,50 | 2800 | 100 |
| BF-6-25-592-592-360-8 | M6 | ePMcoarse 70 % | 592 | 592 | 360 | 8 | 3,40 | 3400 | 100 |
| BF-6-25-287-592-535-3 | M6 | ePMcoarse 70 % | 287 | 592 | 535 | 3 | 1,90 | 1700 | 100 |
| BF-6-25-490-592-535-5 | M6 | ePMcoarse 70 % | 490 | 592 | 535 | 5 | 3,20 | 2800 | 100 |
| BF-6-25-592-592-535-6 | M6 | ePMcoarse 70 % | 592 | 592 | 535 | 6 | 3,80 | 3400 | 80 |
| BF-6-25-287-592-535-4 | M6 | ePMcoarse 70 % | 287 | 592 | 535 | 4 | 2,50 | 1700 | 80 |
| BF-6-25-490-592-535-6 | M6 | ePMcoarse 70 % | 490 | 592 | 535 | 6 | 3,80 | 2800 | 80 |
| BF-6-25-592-592-535-8 | M6 | ePMcoarse 70 % | 592 | 592 | 535 | 8 | 5,00 | 3400 | 80 |
| BF-6-25-287-592-635-3 | M6 | ePMcoarse 70 % | 287 | 592 | 635 | 3 | 2,30 | 1700 | 80 |
| BF-6-25-490-592-635-5 | M6 | ePMcoarse 70 % | 490 | 592 | 635 | 5 | 3,80 | 2800 | 75 |
| BF-6-25-592-592-635-6 | M6 | ePMcoarse 70 % | 592 | 592 | 635 | 6 | 4,60 | 3400 | 75 |
| BF-6-25-287-592-635-4 | M6 | ePMcoarse 70 % | 287 | 592 | 635 | 4 | 3,00 | 1700 | 75 |
| BF-6-25-490-592-635-6 | M6 | ePMcoarse 70 % | 490 | 592 | 635 | 6 | 4,50 | 2800 | 75 |
| BF-6-25-592-592-635-8 | M6 | ePMcoarse 70 % | 592 | 592 | 635 | 8 | 6,00 | 3400 | 75 |
- Pre filtration in high air flow systems.
- Final filtration of suspended particles.
- Atmosphere control in hospitals ,laboratories ,
clean rooms, processing data centres. - Comfort air conditioning applications
Similar Products
F7 F8 Bag Filters
| Filter Media | Synthetic Polyester |
| Frame Material | Galvanized Sheet Metal |
| Frame Thickness | 20-25 mm |
| Classification (EN779:2012) | F7 - F8 EN 779 |
| Classification (ISO 16890) | ePM 2.5 /ePM1 |
| Final Pressure Drop | 250 Pa |
| Max. Temperature | 80°C |
| Max. Moisture | 90% |
| Rated Face Velocity | 2,70 m/s |
