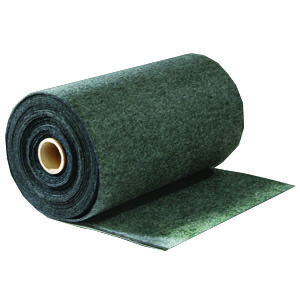

Activated Carbon Empegress Polyester Filter Media Rolls
Activated Carbon Empegress Polyester Filter Media Rolls
| Filtration Metarial | Activeted Carbon Imregnated Polyester |
| Classification (EN779:2012) | G3 |
| Classification (ISO16890) | ePMcoarse |
| Flammability (DIN53438) | F1 |
| Final Pressure Drop | 250 Pa |
| Max. Temperature | 90°C |
| Max. Moisture | 100% |
| Thickness | 12mm |
| Roll Dimensions | 2mx20m |
PROPOSAL FORM
| Product Name |
Class EN779 |
Class ISO16890 |
Width (m) |
Lenght (m) |
Filtration Area (m2) |
Nominal Air Flow (m3/h m2) |
Initial Pressure DROP (± 10 % Pa) |
| MR AC 2 20 | G3 | ePMcoarse 45% |
2 | 20 | 40 | 5400 | 40 |
- Used as prefilter for ventilation and air conditioning systems.
- Used as paint spray and varnishing applications.
- Used as pre filter in industrial systems and fancoils
- High dust holding capacity and low pressure drop.
- Available as standard rolls or cut as required sizes.
Similar Products
G3-G4 Synthetic Roller Filter
| Filter Material | Polyester (PET) |
| Class (EN779:2012) | G3-G4 |
| Class (ISO16890) | ePMcoarse |
| Flammability | F1 |
| Final Pressure Drop | 250 Pa |
| Max. Temperature | 80°C |
| Max. Moisture | 100% |
| Roll Dimensions | 2mt x 20mt |
Paint Stop Glass Fiber Rolls
| Filter Material | Polyester (PET) |
| Class (EN779:2012) | G3-G4 |
| Class (ISO16890) | ePMcoarse |
| Flammability | F1 |
| Final Pressure Drop | 250 Pa |
| Max. Temperature | 120°C |
| Max. Moisture | 100% |
| Roll Dimensions | 2mt x 20mt |
M5 Ceiling Filter Media Rolls
| Filtration Metarial | Synthetic Fibre |
| Weight | 600 g/m2 |
| Classification (EN779:2012) | M5 |
| Flammability (DIN53438) | F1 |
| Final Pressure Drop | 250 Pa |
| Max. Temperature | 90°C |
| Max. Moisture | 100% |
| Thickness | 22mm |
Polyurethane Sponge Filter Pads
| Filtration Metaria | PolyurethaneSponge |
| Classification (EN779:2012) | G2-G3 |
| Flammability (DIN53438) | F1 |
| Final Pressure Drop | 250 Pa |
| Max. Temperature | 80 °C |
| Max. Moisture | 100% |
| Dimension (cm) | 150x200 cut to size |
